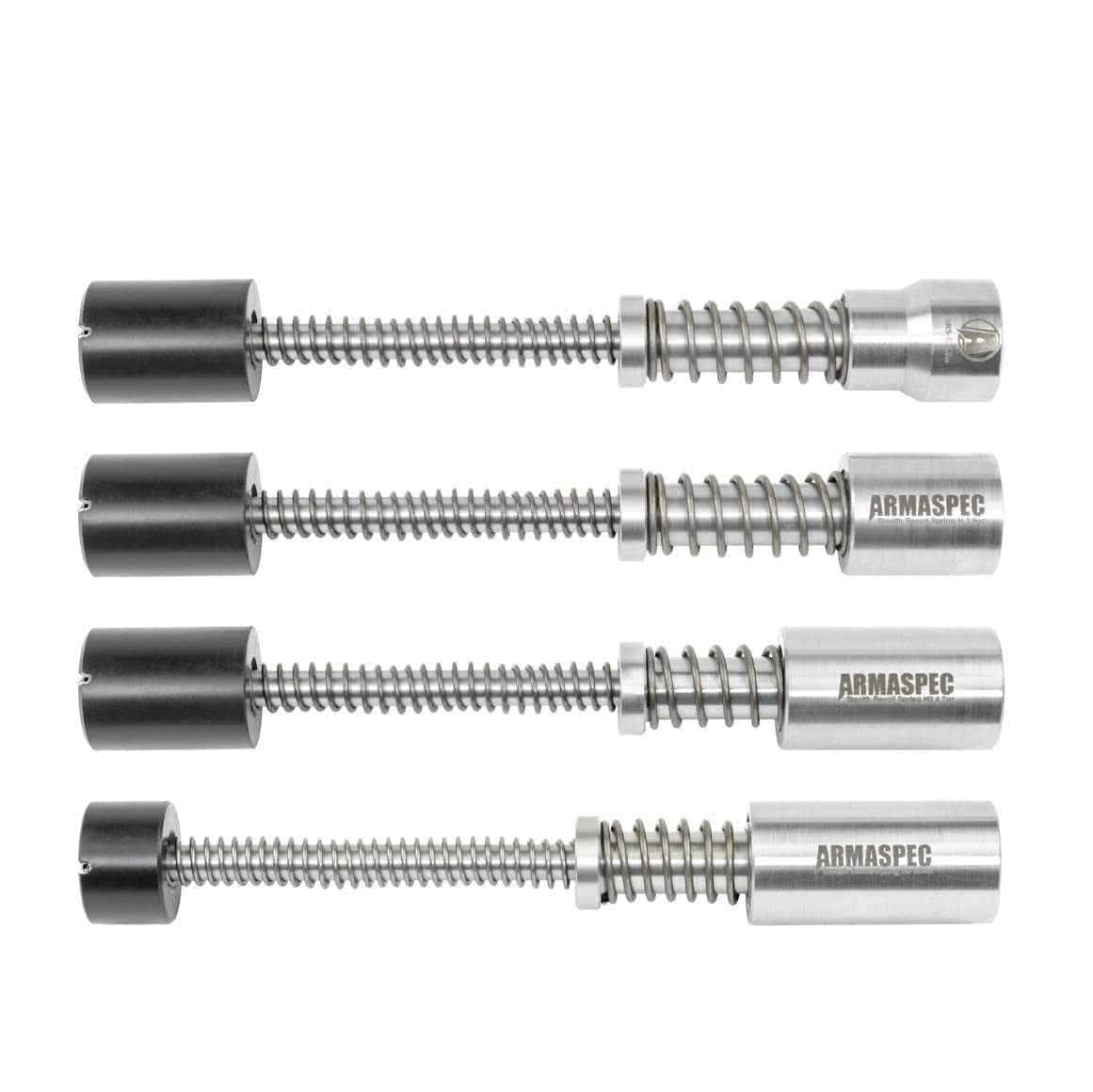

Stealth Recoil Spring – SRS- AR15 GEN4

Description

The Stealth Recoil Spring SRS GEN4 is a self-contained multi-stage drop-in replacement for your standard buffer and spring. The SRS is designed to keep the buffer spring from rubbing against the inner wall of the buffer tube providing smooth, quiet operation and the second stage helps reduce the felt recoil significantly.

NOTE: The new GEN4 version does not have the oring on the weight.

To eliminate any potential failure points we changed the screw to a roll pin across the plastic end piece and the cap is machined on the rod replaced the snap ring with a washer.

FEATURES:

• Drop-in replacement for standard buffer and spring
• Reduce felt recoil
• Keep the buffer spring from rubbing against the inner wall of the buffer tube
• Buffer mass is designed to stay under constant tension against the bolt carrier
• Made in the U.S.A.

SPECIFICATIONS:

• Length: 7.18″
• Equivalent Weight:
  • C: 3.3 oz.
  • H: 3.8 oz.
  • H2: 4.7 oz.
  • H3: 5.6 oz.
  • BB: 5.7 oz.
  • 9MM: 6.4 oz.

• Actual Wight – Complete System (new version with stainless steel weight):
  • C: 6.2 oz.
  • H: 6.6 oz.
  • H2: 7.4 oz.
  • H3: 8.0 oz.
  • BB: 7.5 oz.
  • 9MM: 9.5 oz.

COMPATIBILITY:

• AR-15 with carbine-length buffer tube

AR10 version is available, please find under AR10 parts.

Most bolt carriers have a rear opening of over .60 , there are a couple of bolt carriers in the market place that have a rear opening of under .60 and will not function with the SRS.

9mm Bolt Carriers ONLY: For proper function of the SRS-9 in your 9mm rifle or pistol, the extra weight on the back of the bolt carrier needs to be removed. It is held in with a spring pin.

INSTALLATION AND MAINTENANCE:

The polymer bumper goes towards the rear of the firearm and the metal weight mass goes towards the bolt carrier.

• The SRS can be installed with our without the buffer retainer. Most people run the SRS without the buffer retainer for ease of maintenance.
